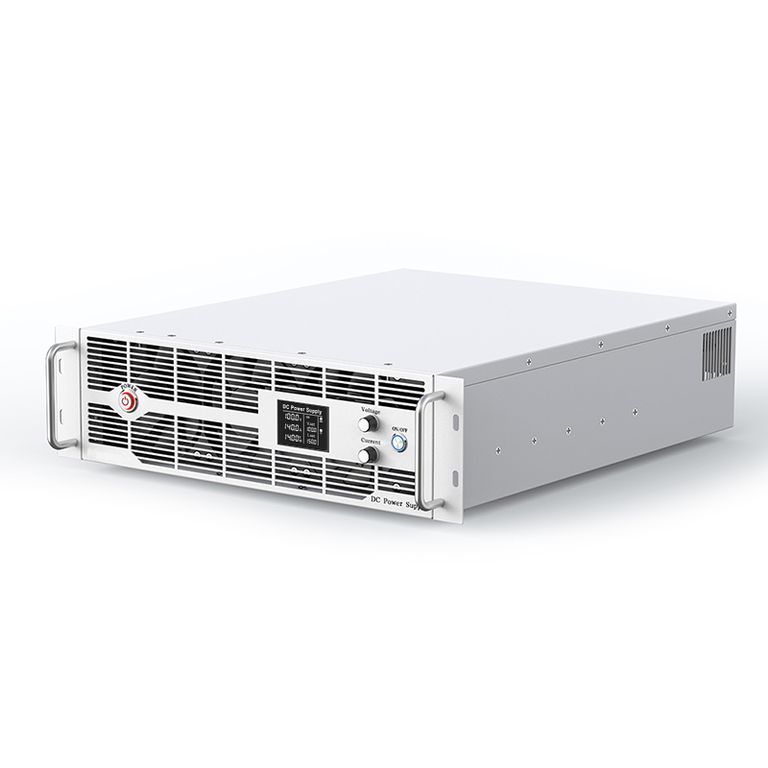

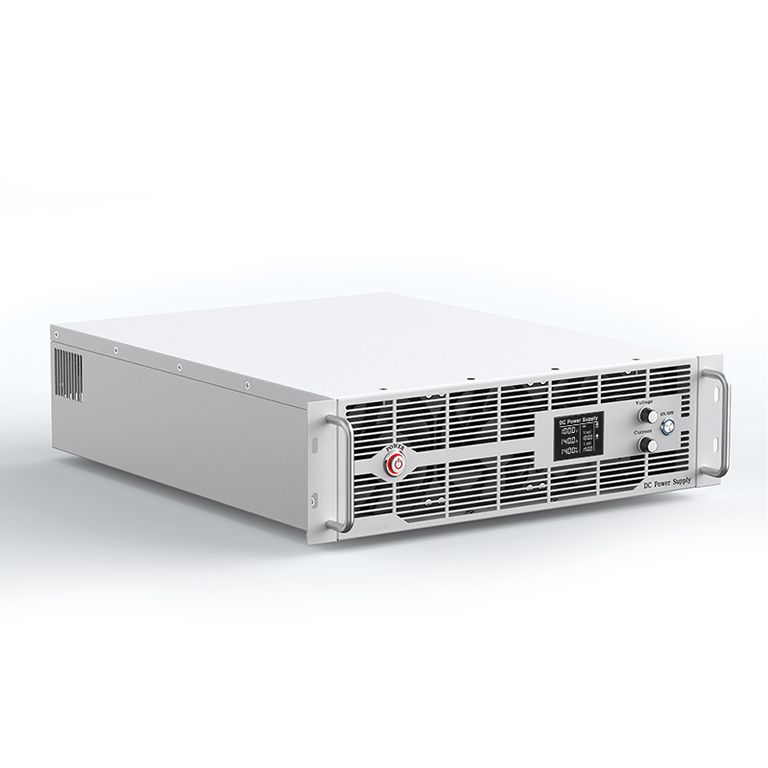

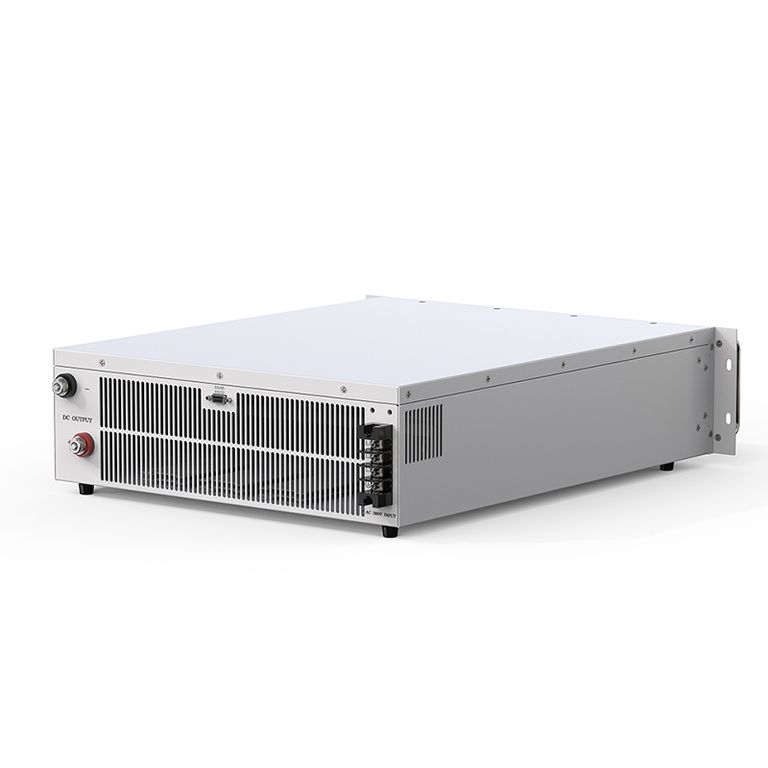

15KW Series programmable DC power supply
15KW Series programmable DC power supply
The main technical parameters of the product
|
Brand |
Xingzhongke |
|
Input voltage |
Three-phase AC380V±15% 50/60HZ |
|
Output voltage |
The range of 0～100% can be set，it can be selected within the range of DC 5-2000V |
|
Output current |
The range of 0～100% can be set，it can be selected within the range of DC 1-500A |
|
Output power |
It can be selected within the range of 15KW(P=U*I，for example 500V*30A=15000W) |
|
Power factor |
≥0.96 (Test under full - load condition) |
|
Efficiency |
≥88%(Test under full - load condition) |
|
Load regulation rate |
CV≤0.5％FS；CC≤1％FS |
|
Control accuracy |
Voltage: 0.5％FS±10mV，Current: 1％FS±100mA |
|
Read back accuracy |
Voltage±0.5% FS ,Current±1% FS |
|
Response time |
No-load rise time:≤200ms,Full-load rise time:≤300ms |
|
Voltage ripple |
V-PP≤0.5% FS |
|
Display |
The 61*42mm high-definition LCD is used for display,and the voltage,current and power are all shown in 4 digits |
|
Power-on state |
The output can be set to be on or off(The default setting is off) |
|
Protection |
Input phase loss,under-voltage,over-voltage,output over-voltage,over-current,over-load,short-circuit and over-temperature |
|
Heat dissipation method |
Intelligent temperature - controlled fan for heat dissipation |
|
Fault prompt |
When a power supply fails, the "fault" status indicator lights up |
|
Setting method |
By digital encoders,the set value has power-off memory |
|
Output control |
ON/OFF button |
|
Communication interface |
RS485 and RS232 are optional |
|
Insulation strength |
Input - output: AC1500V, 10mA, 1 minute Input - chassis: AC1500V, 10mA, 1 minute Output - chassis: AC1500V, 10mA, 1 minute |
|
Operating environment requirements |
Indoor, altitude ≤ 2000m, relative humidity: ≤ 80% (non - condensing), ambient temperature (-15 - 45)℃, pollution degree: 2 |
|
Storage environment requirements |
Indoor, relative humidity: ≤ 80%, ambient temperature: (-20 - 70)℃
|
|
Dimensions |
L600*W480*H132 mm |
|
Net Weight |
28kg |
|
Packing Size |
L730*W595*H260 mm |
|
Gross Weight |
33kg |
Model selection reference for 15KW series machines. Customization can be provided for parameters not listed.
|
Model |
Output voltage |
Output current |
Output power |
|
ZK-SPS-5V500A-3 |
0-5V |
0-500A |
2500W |
|
ZK-SPS-10V500A-3 |
0-10V |
0-500A |
5000W |
|
ZK-SPS-12V500A-3 |
0-12V |
0-500A |
6000W |
|
ZK-SPS-15V500A-3 |
0-15V |
0-500A |
7500W |
|
ZK-SPS-30V250A-3 |
0-30V |
0-250A |
7500W |
|
ZK-SPS-30V300A-3 |
0-30V |
0-300A |
9000W |
|
ZK-SPS-30V400A-3 |
0-30V |
0-400A |
12000W |
|
ZK-SPS-30V500A-3 |
0-30V |
0-500A |
15000W |
|
ZK-SPS-60V120A-3 |
0-60V |
0-120A |
7200W |
|
ZK-SPS-60V150A-3 |
0-60V |
0-150A |
9000W |
|
ZK-SPS-60V200A-3 |
0-60V |
0-200A |
12000W |
|
ZK-SPS-60V250A-3 |
0-60V |
0-250A |
15000W |
|
ZK-SPS-80V100A-3 |
0-80V |
0-100A |
8000W |
|
ZK-SPS-80V120A-3 |
0-80V |
0-120A |
9600W |
|
ZK-SPS-80V150A-3 |
0-80V |
0-150A |
12000W |
|
ZK-SPS-80V180A-3 |
0-80V |
0-180A |
14400W |
|
ZK-SPS-100V80A-3 |
0-100V |
0-80A |
8000W |
|
ZK-SPS-100V100A-3 |
0-100V |
0-100A |
10000W |
|
ZK-SPS-100V120A-3 |
0-100V |
0-120A |
12000W |
|
ZK-SPS-100V150A-3 |
0-100V |
0-150A |
15000W |
|
ZK-SPS-150V50A-3 |
0-150V |
0-50A |
7500W |
|
ZK-SPS-150V60A-3 |
0-150V |
0-60A |
9000W |
|
ZK-SPS-150V80A-3 |
0-150V |
0-80A |
12000W |
|
ZK-SPS-150V100A-3 |
0-150V |
0-100A |
15000W |
|
ZK-SPS-200V40A-3 |
0-200V |
0-40A |
8000W |
|
ZK-SPS-200V50A-3 |
0-200V |
0-50A |
10000W |
|
ZK-SPS-200V60A-3 |
0-200V |
0-60A |
12000W |
|
ZK-SPS-200V75A-3 |
0-200V |
0-75A |
15000W |
|
ZK-SPS-250V30A-3 |
0-250V |
0-30A |
7500W |
|
ZK-SPS-250V40A-3 |
0-250V |
0-40A |
10000W |
|
ZK-SPS-250V50A-3 |
0-250V |
0-50A |
12500W |
|
ZK-SPS-250V60A-3 |
0-250V |
0-60A |
15000W |
|
ZK-SPS-300V30A-3 |
0-300V |
0-30A |
9000W |
|
ZK-SPS-300V40A-3 |
0-300V |
0-40A |
12000W |
|
ZK-SPS-300V50A-3 |
0-300V |
0-50A |
15000W |
|
ZK-SPS-400V20A-3 |
0-400V |
0-20A |
8000W |
|
ZK-SPS-400V25A-3 |
0-400V |
0-25A |
10000W |
|
ZK-SPS-400V30A-3 |
0-400V |
0-30A |
12000W |
|
ZK-SPS-500V15A-3 |
0-500V |
0-15A |
7500W |
|
ZK-SPS-500V20A-3 |
0-500V |
0-20A |
10000W |
|
ZK-SPS-500V25A-3 |
0-500V |
0-25A |
12500W |
|
ZK-SPS-500V30A-3 |
0-500V |
0-30A |
15000W |
|
ZK-SPS-600V15A-3 |
0-600V |
0-15A |
9000W |
|
ZK-SPS-600V20A-3 |
0-600V |
0-20A |
12000W |
|
ZK-SPS-600V25A-3 |
0-600V |
0-25A |
15000W |
|
ZK-SPS-800V10A-3 |
0-800V |
0-10A |
8000W |
|
ZK-SPS-800V15A-3 |
0-800V |
0-15A |
12000W |
|
ZK-SPS-800V18A-3 |
0-800V |
0-18A |
14400W |
|
ZK-SPS-1000V8A-3 |
100-1000V |
0-8A |
8000W |
|
ZK-SPS-1000V10A-3 |
100-1000V |
0-10A |
10000W |
|
ZK-SPS-1000V12A-3 |
100-1000V |
0-12A |
12000W |
|
ZK-SPS-1000V15A-3 |
100-1000V |
0-15A |
15000W |
|
ZK-SPS-1200V6A-3 |
100-1200V |
0-6A |
7200W |
|
ZK-SPS-1200V8A-3 |
100-1200V |
0-8A |
9600W |
|
ZK-SPS-1200V10A-3 |
100-1200V |
0-10A |
12000W |
|
ZK-SPS-1500V5A-3 |
100-1500V |
0-5A |
7500W |
|
ZK-SPS-1500V6A-3 |
100-1500V |
0-6A |
9000W |
|
ZK-SPS-1500V8A-3 |
100-1500V |
0-8A |
12000W |
|
ZK-SPS-1500V10A-3 |
100-1500V |
0-10A |
15000W |
|
ZK-SPS-2000V4A-3 |
100-2000V |
0-4A |
8000W |
|
ZK-SPS-2000V5A-3 |
100-2000V |
0-5A |
10000W |
|
ZK-SPS-2000V6A-3 |
100-2000V |
0-6A |
12000W |
Customer Ordering Notes
To help customers more accurately and quickly select suitable power supply Products , the following customization parameters are provided for reference:
● Input voltage, frequency, and range of the power supply.
● Output voltage and adjustable range.
● Output current or power and adjustable range.
● Load characteristics, such as resistive, inductive, or capacitive.
● Operating environment requirements.
● Communication requirements.
● Other special requirements.
