2KW Series programmable DC power supply
2KW Series programmable DC power supply
The main technical parameters of the product
|
Brand |
Xingzhongke |
|
Input voltage |
Single-phase AC220V±15% or AC110V±15% 50/60HZ |
|
Output voltage |
The range of 0～100% can be set，it can be selected within the range of DC 5-600V |
|
Output current |
The range of 0～100% can be set，it can be selected within the range of DC 1-100A |
|
Output power |
It can be selected within the range of 2KW(P=U*I，for example 200V*10A=2000W) |
|
Efficiency |
≥92%(Test under full - load condition) |
|
Load regulation rate |
CV≤0.5％；CC≤1％ |
|
Control accuracy |
Voltage: 0.5％±10mV，Current: 1％±100mA |
|
Read back accuracy |
Voltage±0.5% F.S ,Current±1% F.S |
|
Response time |
No-load rise time:≤200ms,Full-load rise time:≤300ms |
|
Voltage ripple |
V-PP≤0.5% |
|

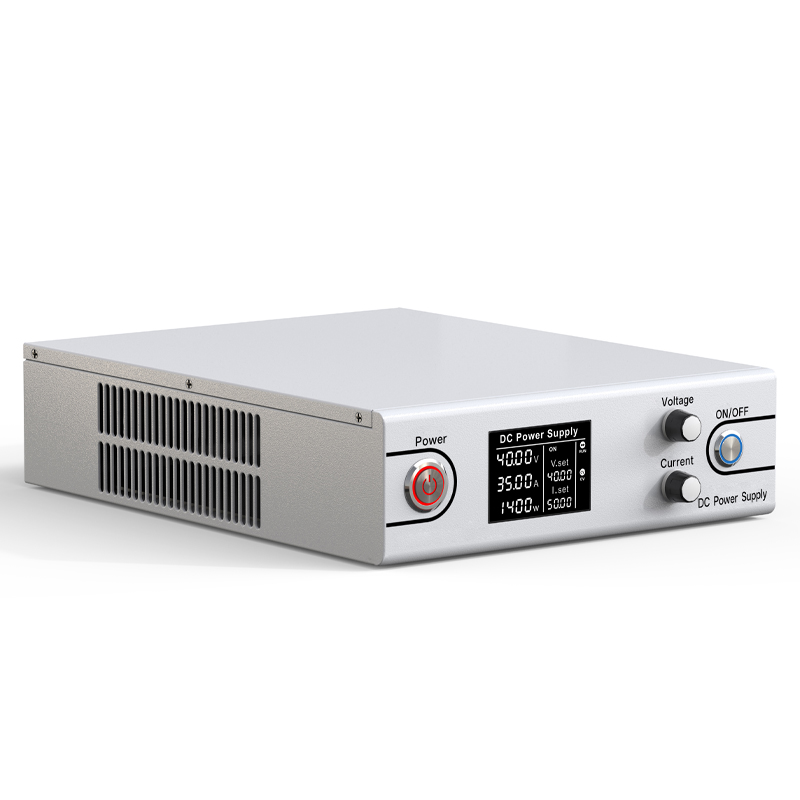

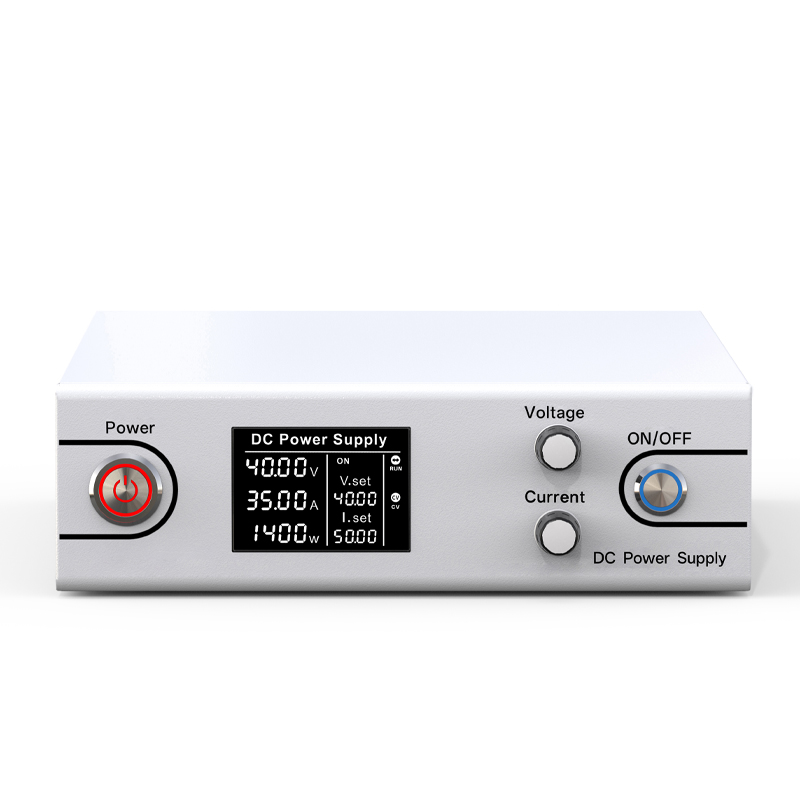

Display |
The 61*42mm high-definition LCD is used for display,and the voltage,current and power are all shown in 4 digits |
|
Power-on state |
The output can be set to be on or off(The default setting is off) |
|
Protection |
Output over-voltage,over-current,over-load,short-circuit and over-temperature |
|

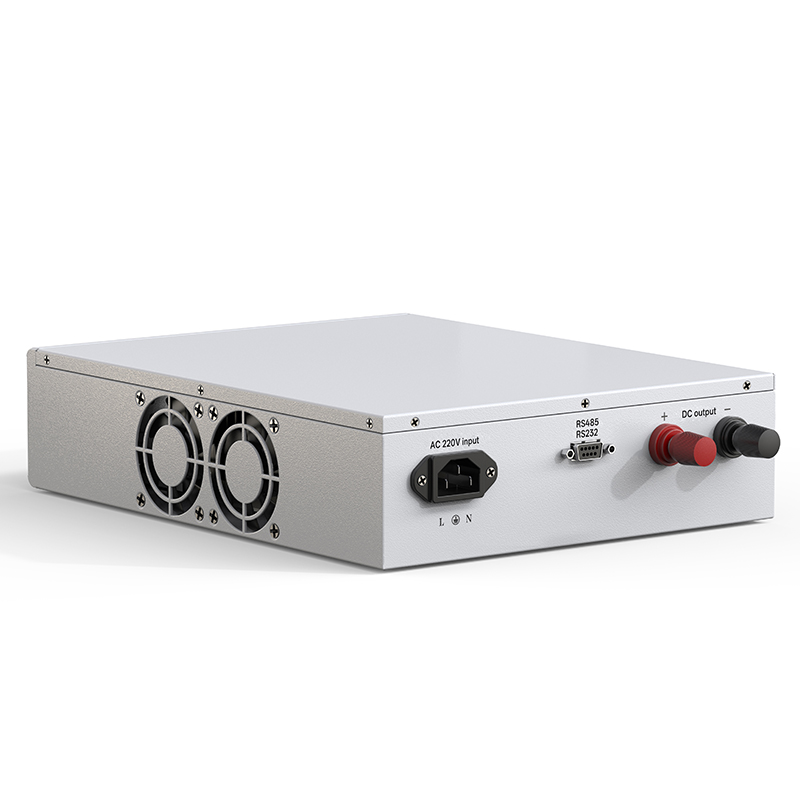

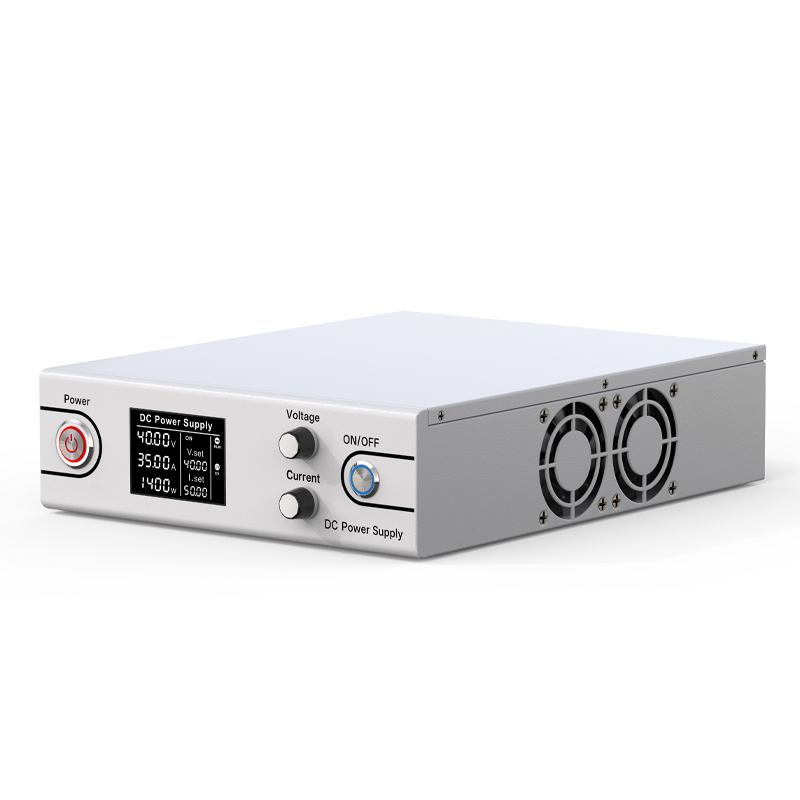

Heat dissipation method |
Intelligent temperature - controlled fan for heat dissipation |
|
Fault prompt |
When a power supply fails, the "fault" status indicator lights up |
|
Setting method |
By digital encoders,the set value has power-off memory |
|
Output control |
ON/OFF button |
|

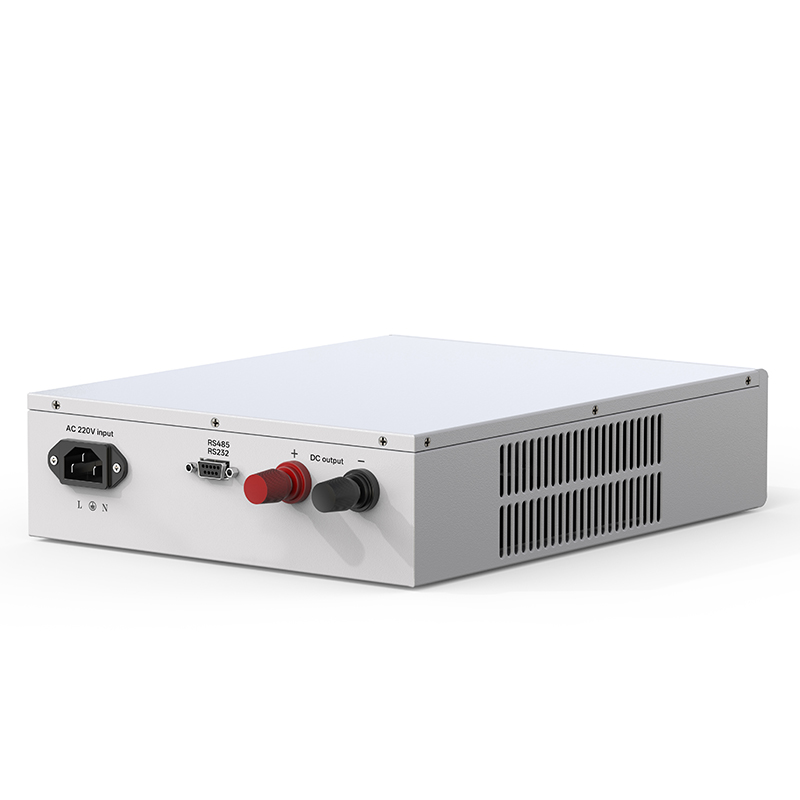

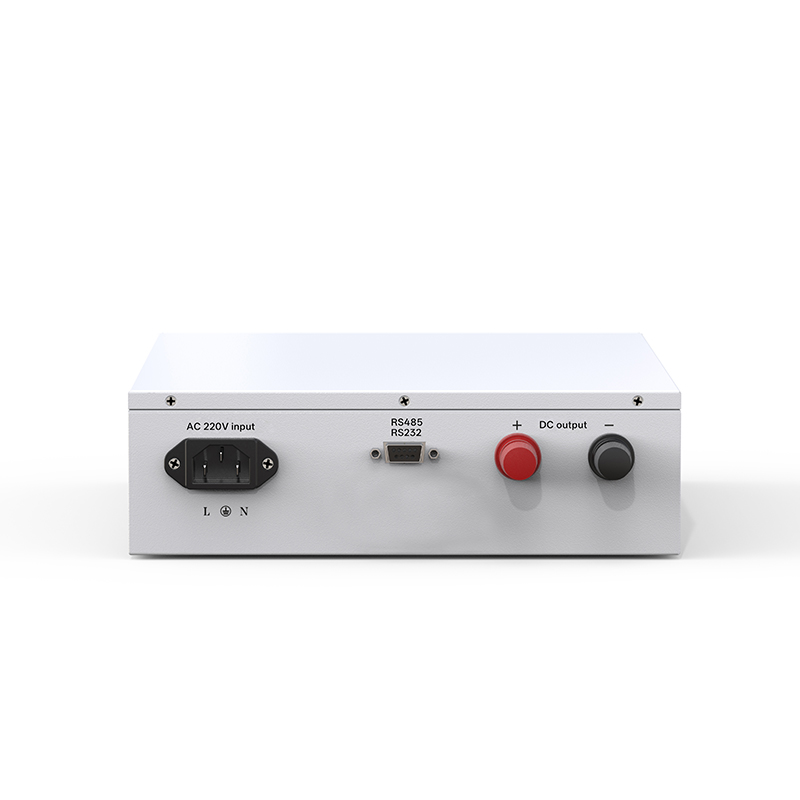

Communication interface |
RS485 and RS232 are optional |
|
Insulation strength |
Input - output: AC1500V, 10mA, 1 minute Input - chassis: AC1500V, 10mA, 1 minute Output - chassis: AC1500V, 10mA, 1 minute |
|
Operating environment requirements |
Indoor, altitude ≤ 2000m, relative humidity: ≤ 80% (non - condensing), ambient temperature (-15 - 45)℃, pollution degree: 2 |
|
Storage environment requirements |
Indoor, relative humidity: ≤ 80%, ambient temperature: (-20 - 70)℃
|
|
Dimensions |
L300*W240*H70 mm |
|
Weight |
4.5kg |
Model selection reference for 2KW series machines. Customization can be provided for parameters not listed.
|
Model |
Output voltage |
Output current |
Output power |
|
ZK-SPS-5V100A-2 |
0-5V |
0-100A |
500W |
|
ZK-SPS-10V100A-2 |
0-10V |
0-100A |
1000W |
|
ZK-SPS-12V100A-2 |
0-12V |
0-100A |
1200W |
|
ZK-SPS-15V100A-2 |
0-15V |
0-100A |
1500W |
|
ZK-SPS-30V20A-2 |
0-30V |
0-20A |
600W |
|
ZK-SPS-30V30A-2 |
0-30V |
0-30A |
900W |
|
ZK-SPS-30V50A-2 |
0-30V |
0-50A |
1500W |
|
ZK-SPS-30V60A-2 |
0-30V |
0-60A |
1800W |
|
ZK-SPS-60V15A-2 |
0-60V |
0-15A |
900W |
|
ZK-SPS-60V20A-2 |
0-60V |
0-20A |
1200W |
|
ZK-SPS-60V30A-2 |
0-60V |
0-30A |
1800W |
|
ZK-SPS-100V5A-2 |
0-100V |
0-5A |
500W |
|
ZK-SPS-100V10A-2 |
0-100V |
0-10A |
1000W |
|
ZK-SPS-100V15A-2 |
0-100V |
0-15A |
1500W |
|
ZK-SPS-100V20A-2 |
0-100V |
0-20A |
2000W |
|
ZK-SPS-150V6A-2 |
0-150V |
0-6A |
900W |
|
ZK-SPS-150V10A-2 |
0-150V |
0-10A |
1500W |
|
ZK-SPS-200V5A-2 |
0-200V |
0-5A |
1000W |
|
ZK-SPS-200V10A-2 |
0-200V |
0-10A |
2000W |
|
ZK-SPS-250V4A-2 |
0-250V |
0-4A |
1000W |
|
ZK-SPS-250V8A-2 |
0-250V |
0-8A |
2000W |
|
ZK-SPS-300V3A-2 |
0-300V |
0-3A |
900W |
|
ZK-SPS-300V5A-2 |
0-300V |
0-5A |
1500W |
|
ZK-SPS-300V6A-2 |
0-300V |
0-6A |
1800W |
|
ZK-SPS-500V2A-2 |
0-500V |
0-2A |
1000W |
|
ZK-SPS-500V4A-2 |
0-500V |
0-4A |
2000W |
|
ZK-SPS-600V1A-2 |
0-600V |
0-1A |
600W |
|
ZK-SPS-600V2A-2 |
0-600V |
0-2A |
1200W |
|
ZK-SPS-600V3A-2 |
0-600V |
0-3A |
1800W |
