6KW Series programmable DC power supply
6KW Series programmable DC power supply
The main technical parameters of the product
|
Brand |
Xingzhongke |
|
Input voltage |
Three-phase AC380V±15% 50/60HZ |
|
Output voltage |
The range of 0～100% can be set，it can be selected within the range of DC 5-1000V |
|
Output current |
The range of 0～100% can be set，it can be selected within the range of DC 1-300A |
|
Output power |
It can be selected within the range of 6KW(P=U*I，for example 200V*30A=6000W) |
|
Efficiency |
≥89%(Test under full - load condition) |
|
Load regulation rate |
CV≤0.5％FS；CC≤1％FS |
|
Control accuracy |
Voltage: 0.5％FS±10mV，Current: 1％FS±100mA |
|
Read back accuracy |
Voltage±0.5% FS ,Current±1% FS |
|
Response time |
No-load rise time:≤200ms,Full-load rise time:≤300ms |
|
Voltage ripple |
V-PP≤0.5% FS |
|

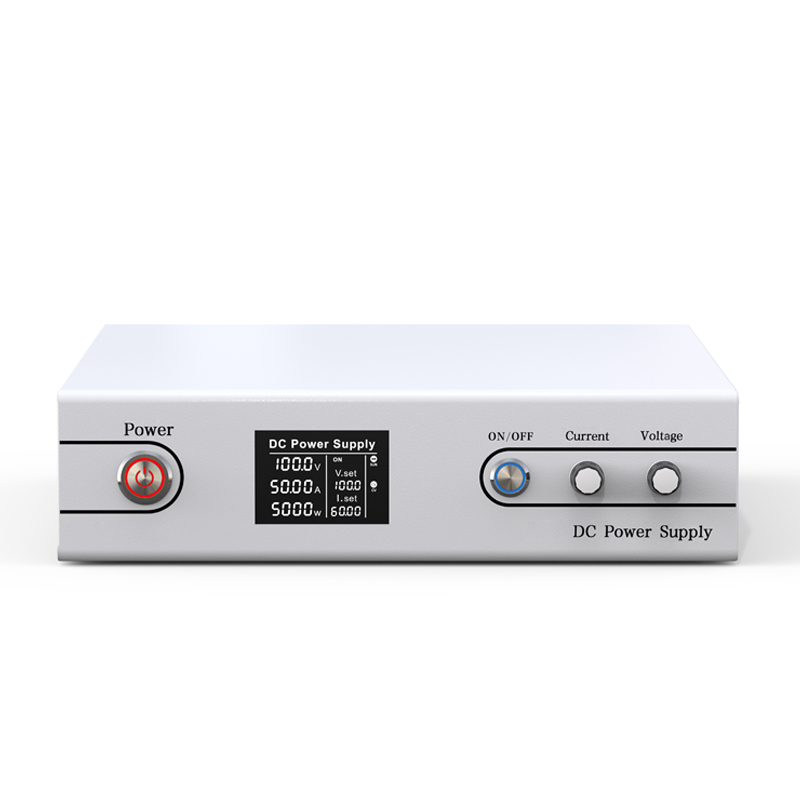

Display |
The 61*42mm high-definition LCD is used for display,and the voltage,current and power are all shown in 4 digits |
|
Power-on state |
The output can be set to be on or off(The default setting is off) |
|
Protection |
Output over-voltage,over-current,over-load,short-circuit and over-temperature |
|
Heat dissipation method |
Intelligent temperature - controlled fan for heat dissipation |
|
Fault prompt |
When a power supply fails, the "fault" status indicator lights up |
|
Setting method |
By digital encoders,the set value has power-off memory |
|
Output control |
ON/OFF button |
|
Communication interface |
RS485 and RS232 are optional |
|
Insulation strength |
Input - output: AC1500V, 10mA, 1 minute Input - chassis: AC1500V, 10mA, 1 minute Output - chassis: AC1500V, 10mA, 1 minute |
|
Operating environment requirements |
Indoor, altitude ≤ 2000m, relative humidity: ≤ 80% (non - condensing), ambient temperature (-15 - 45)℃, pollution degree: 2 |
|
Storage environment requirements |
Indoor, relative humidity: ≤ 80%, ambient temperature: (-20 - 70)℃
|
|
Dimensions |
L350*W310*H80 mm |
|
Net Weight |
8kg |
|
Packing Size |
L475*W380*H140 mm |
|
Gross Weight |
9Kg |
Model selection reference for 6KW series machines. Customization can be provided for parameters not listed.
|
Model |
Output voltage |
Output current |
Output power |
|
ZK-SPS-5V300A-3 |
0-5V |
0-300A |
1500W |
|
ZK-SPS-10V300A-3 |
0-10V |
0-300A |
3000W |
|
ZK-SPS-12V300A-3 |
0-12V |
0-300A |
3600W |
|
ZK-SPS-15V300A-3 |
0-15V |
0-300A |
4500W |
|
ZK-SPS-30V150A-3 |
0-30V |
0-150A |
4500W |
|
ZK-SPS-30V180A-3 |
0-30V |
0-180A |
5400W |
|
ZK-SPS-30V200A-3 |
0-30V |
0-200A |
6000W |
|
ZK-SPS-60V80A-3 |
0-60V |
0-80A |
4800W |
|
ZK-SPS-60V100A-3 |
0-60V |
0-100A |
6000W |
|
ZK-SPS-100V50A-3 |
0-100V |
0-50A |
5000W |
|
ZK-SPS-100V60A-3 |
0-100V |
0-60A |
6000W |
|
ZK-SPS-150V30A-3 |
0-150V |
0-30A |
4500W |
|
ZK-SPS-150V40A-3 |
0-150V |
0-40A |
6000W |
|
ZK-SPS-200V25A-3 |
0-200V |
0-25A |
5000W |
|
ZK-SPS-200V30A-3 |
0-200V |
0-30A |
6000W |
|
ZK-SPS-250V20A-3 |
0-250V |
0-20A |
5000W |
|
ZK-SPS-250V24A-3 |
0-250V |
0-24A |
6000W |
|
ZK-SPS-300V15A-3 |
0-300V |
0-15A |
4500W |
|
ZK-SPS-300V20A-3 |
0-300V |
0-20A |
6000W |
|
ZK-SPS-400V15A-3 |
0-400V |
0-15A |
6000W |
|
ZK-SPS-500V10A-3 |
0-500V |
0-10A |
5000W |
|
ZK-SPS-500V12A-3 |
0-500V |
0-12A |
6000W |
|
ZK-SPS-600V8A-3 |
0-600V |
0-8A |
4800W |
|
ZK-SPS-600V10A-3 |
0-600V |
0-10A |
6000W |
|
ZK-SPS-800V6A-3 |
100-800V |
0-6A |
4800W |
|
ZK-SPS-800V7.5A-3 |
100-800V |
0-7.5A |
6000W |
|
ZK-SPS-1000V5A-3 |
100-1000V |
0-5A |
5000W |
|
ZK-SPS-1000V6A-3 |
100-1000V |
0-6A |
6000W |
